Email Links Marked as Unsafe Due to Tracking URL Certificate Error(Agent511)

This article explains why Agent511 email templates may trigger a browser certificate error (NET::ERR_CERT_COMMON_NAME_INVALID) when recipients click tracked links, and provides step-by-step instructions to reproduce and resolve the issue. Intended for internal support agents.

Category  Email Deliverability Product  Agent511 Reference Ticket  #24729

Overview

Agent511 appends click-tracking parameters to outbound email links, routing recipients through track.comed.com before reaching the intended destination. In certain cases, this redirect triggers a browser security warning, specifically the NET::ERR_CERT_COMMON_NAME_INVALID error, and prevents recipients from accessing the linked content.

Investigation identified two contributing factors: (1) SendGrid was inconsistently generating HTTP rather than HTTPS tracking links, and (2) the Exelon corporate network firewall or proxy was further blocking track.comed.com for specific users. The SendGrid-side issue has been resolved; the network-side issue requires action from the customer's internal IT team.

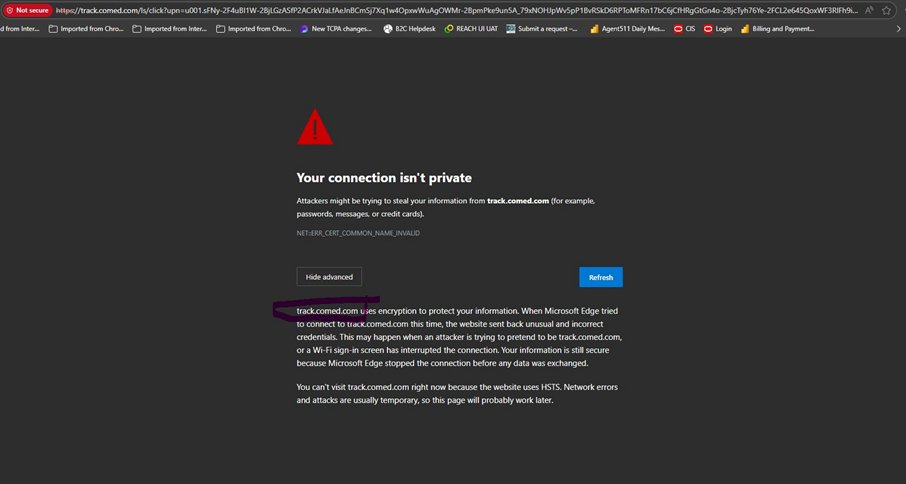

Screenshot 1: Browser displaying 'Your connection isn't private' error (NET::ERR_CERT_COMMON_NAME_INVALID) on track.comed.com

Screenshot 1: Browser displaying 'Your connection isn't private' error (NET::ERR_CERT_COMMON_NAME_INVALID) on track.comed.com

ℹ Important Note

This issue is network-specific. Users on personal devices or off the Exelon corporate network are able to open tracked links without errors.

The browser certificate warning does not indicate a security breach in Agent511 or SendGrid — it is caused by an HTTP vs. HTTPS mismatch and/or a corporate network security policy blocking track.comed.com.

Prerequisites

Before you begin, ensure you have the following:

  • Access to the Agent511 Production UI at https://exelon.reach-pc.com/reachui/app/#app/notifications
  • Login credentials with sufficient permissions to view and test notification templates.
  • The template ID and ticket reference reported by the customer (e.g., Template 1899, Ticket #24729).
  • A personal or non-corporate email address to receive test emails during verification.

Step-by-Step Instructions

Follow these steps to reproduce and verify the issue for a reported template:

  1. Log in to the Agent511 UI (Production): Navigate to https://exelon.reach-pc.com/reachui/app/#app/notifications. Once logged in, click on the Notifications tab in the top navigation bar.

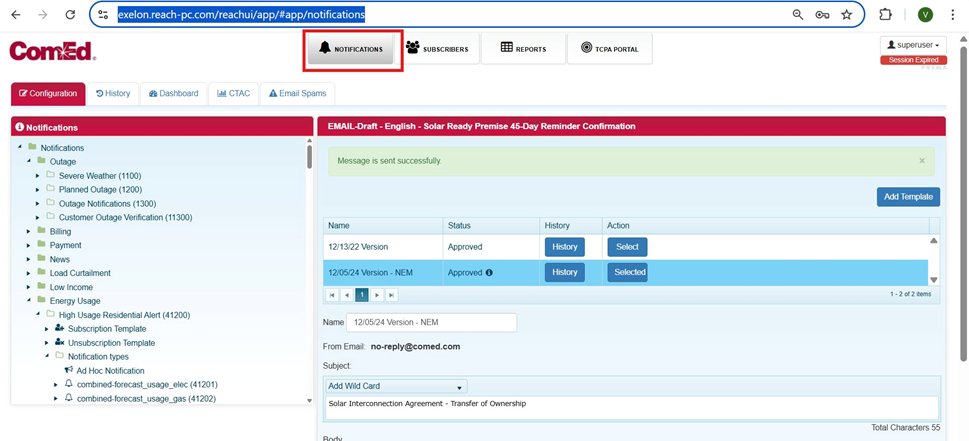

    Screenshot 2: Agent511 production UI — Notifications tab selected (highlighted in red)

    Screenshot 2: Agent511 production UI — Notifications tab selected (highlighted in red)

  2. Navigate to Confirmations > Default: On the left side panel, expand Notifications, then expand Confirmations, and select Default to reveal the full list of notification templates.

    alt Default expanded" style="border:1px solid #D2E9FC; border-radius:6px; max-width:100%; display:block;" /

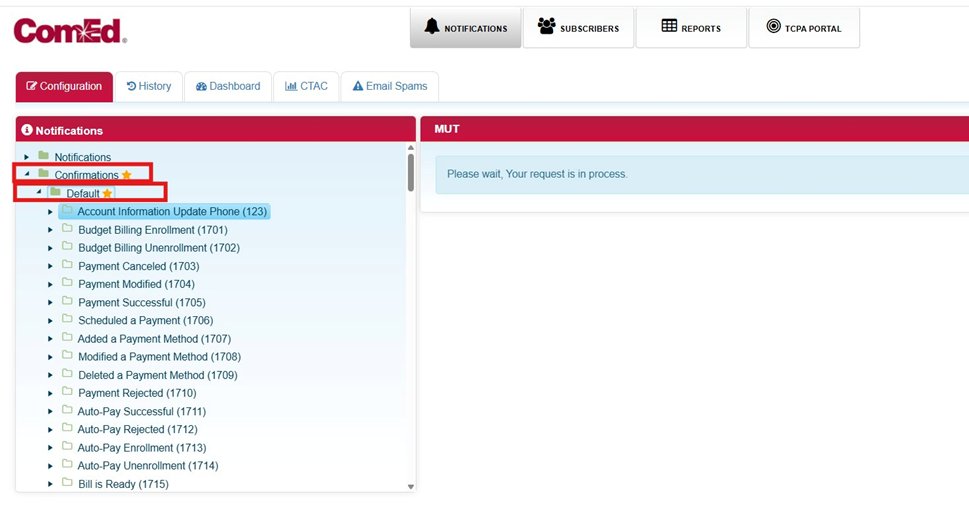

    Screenshot 3: Left panel showing Confirmations Default expanded

  3. Locate the reported template: Scroll down to find the template reported by the customer (e.g., Solar Ready Premise 45-Day Reminder (1899)). Expand it, then click English > Email and select Email-Draft to begin testing.

    alt Email Email-Draft highlighted" style="border:1px solid #D2E9FC; border-radius:6px; max-width:100%; display:block;" /

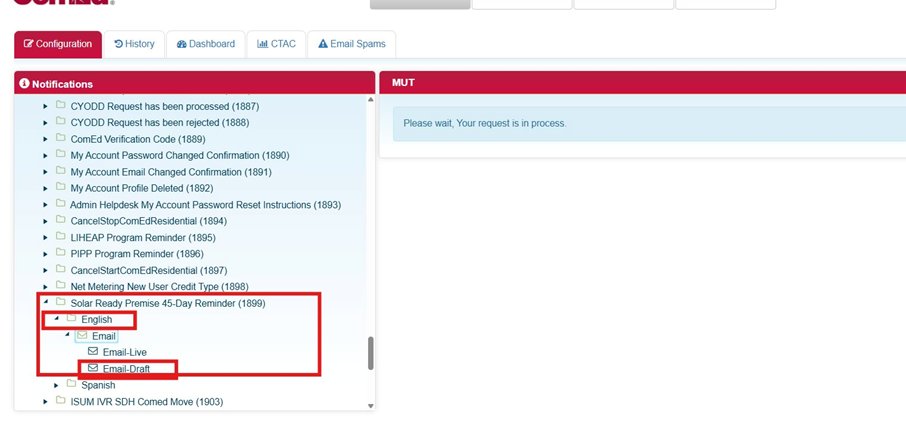

    Screenshot 4: Template expanded — English Email Email-Draft highlighted

  4. Select the live template version for testing: The right panel displays available template versions. Select the version marked with the ℹ symbol — this indicates it is currently used as the live template.

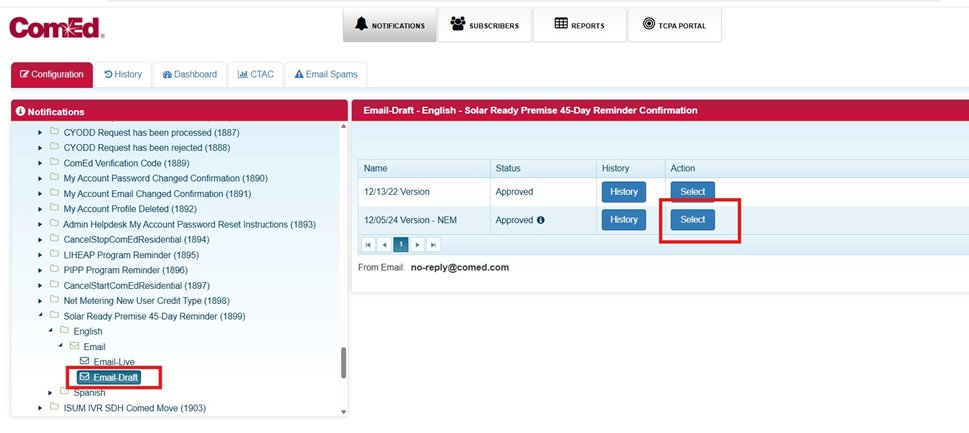

    Screenshot 5: Template version list — Select button on the current live version

    Screenshot 5: Template version list — Select button on the current live version

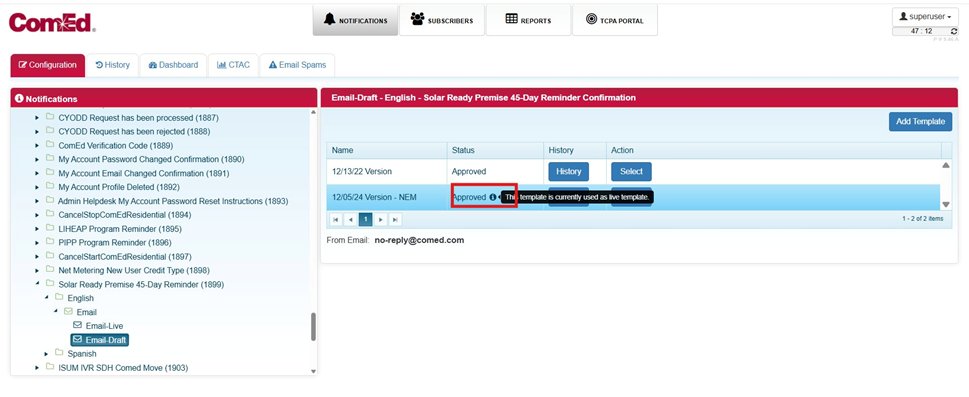

    Screenshot 6: Tooltip confirming 'This template is currently used as live template'

    Screenshot 6: Tooltip confirming 'This template is currently used as live template'

  5. Click “Test Draft”: Scroll to the bottom of the page. Four action buttons are displayed: Test Draft, Save Draft, Reset, and Make It Live. Click the Test Draft button.

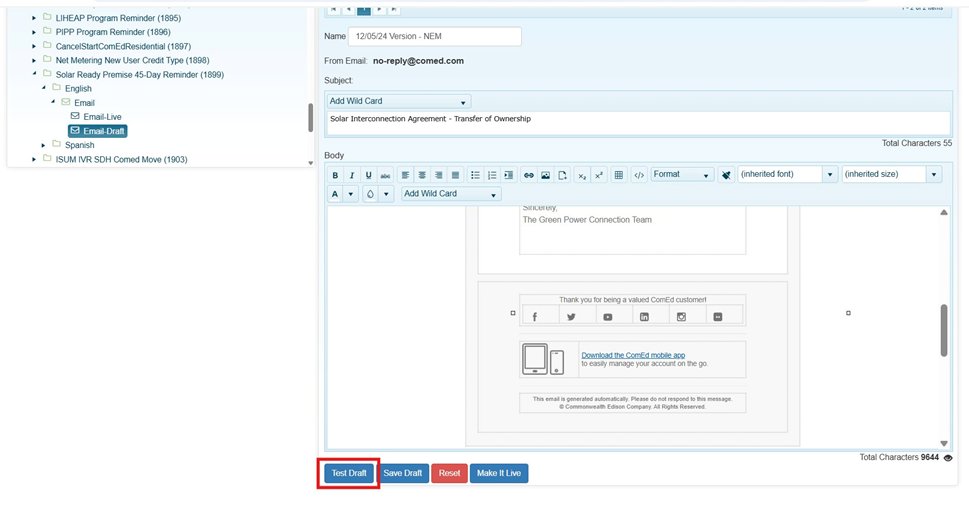

    Screenshot 7: Template editor — Test Draft button at the bottom highlighted

    Screenshot 7: Template editor — Test Draft button at the bottom highlighted

  6. Enter a test email address and send: A popup will appear with a preview of the email template and a Test Email field at the bottom. Enter a personal, non-Exelon email address (e.g., venukoneti23@gmail.com), then click Send.

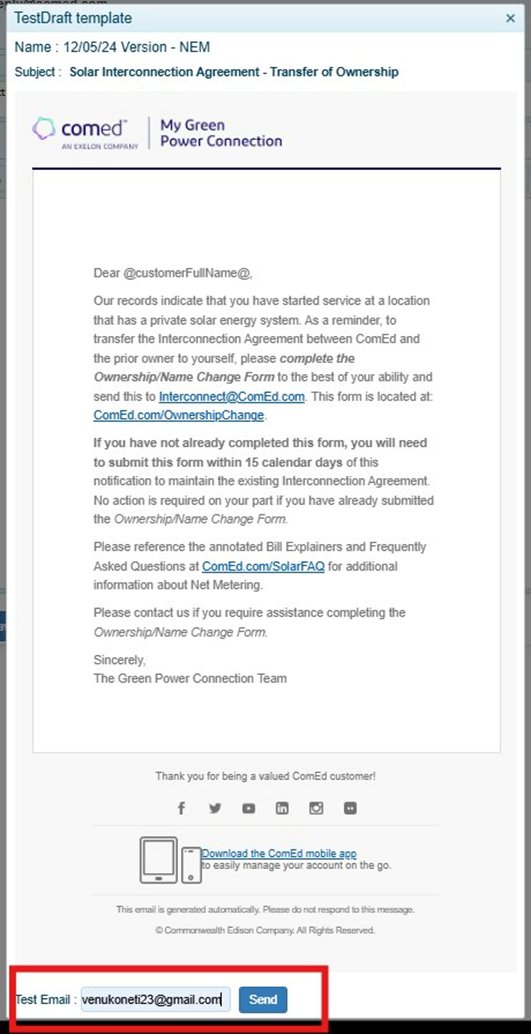

    Screenshot 8: TestDraft popup — test email address entered, Send button visible

    Screenshot 8: TestDraft popup — test email address entered, Send button visible

  7. Verify receipt of the test email: Confirm the test email was received in the inbox. The subject line should read “Solar Interconnection Agreement - Transfer of Ownership”, sent from no-reply@comed.com.

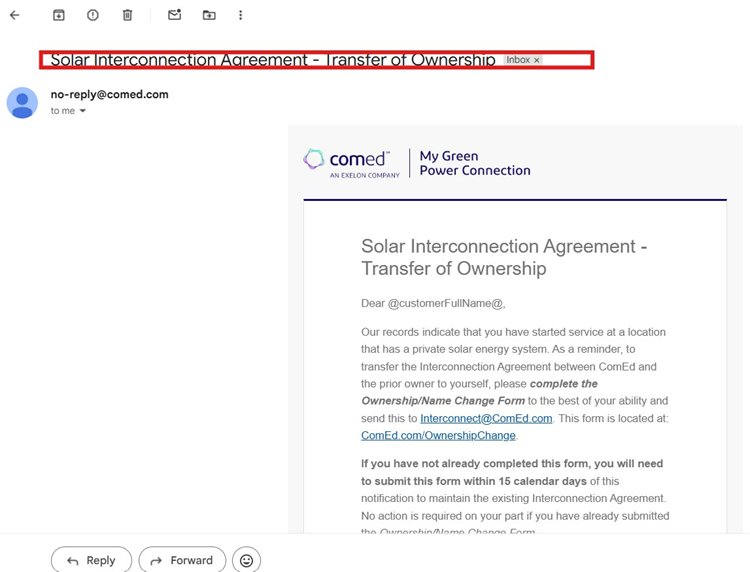

    Screenshot 9: Test email received in Gmail inbox — subject line and sender confirmed

    Screenshot 9: Test email received in Gmail inbox — subject line and sender confirmed

  8. Verify the tracked links in the email: Open the email and identify the two tracked links: ComEd.com/OwnershipChange and ComEd.com/SolarFAQ. Click each link and note whether it opens correctly or displays a certificate error. Errors persisting only on the corporate network should be escalated to customer IT.

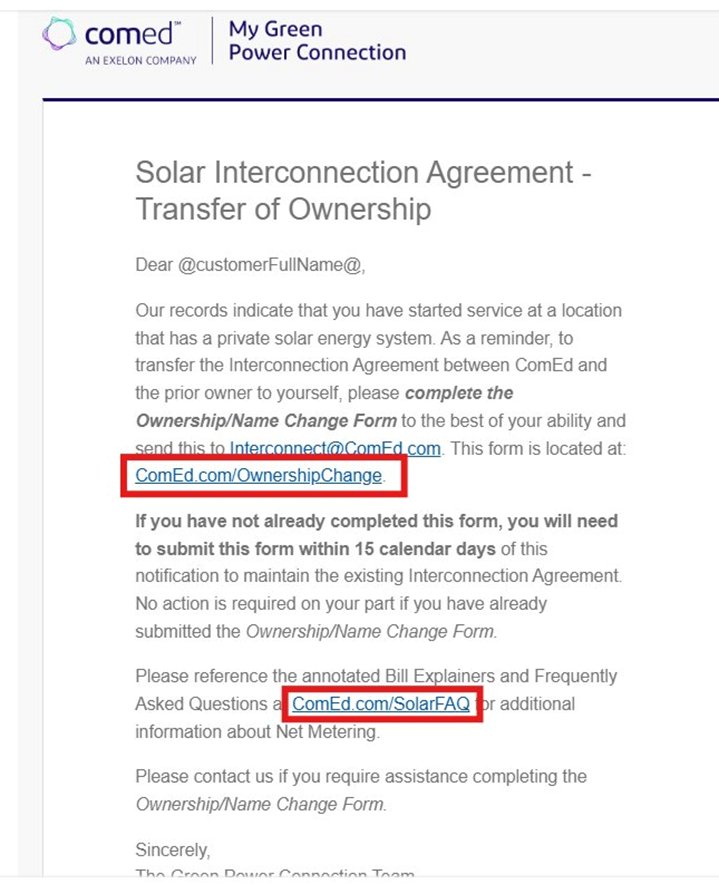

    Screenshot 10: Email body — both tracked links highlighted (ComEd.com/OwnershipChange and ComEd.com/SolarFAQ)

    Screenshot 10: Email body — both tracked links highlighted (ComEd.com/OwnershipChange and ComEd.com/SolarFAQ)

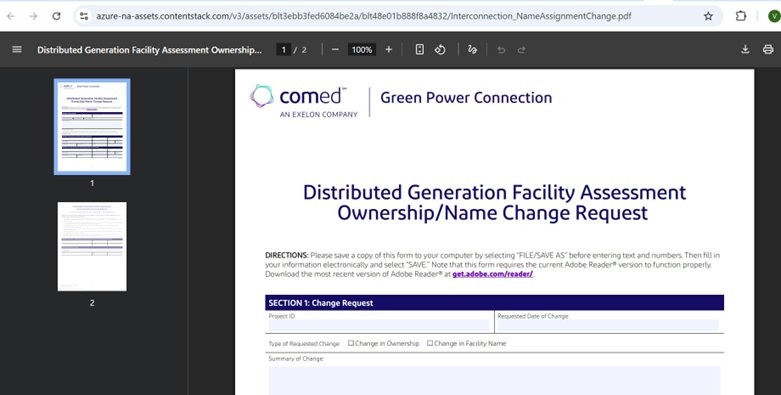

    Screenshot 11: URL 1 — ComEd.com/OwnershipChange opened successfully (Distributed Generation Facility Assessment PDF)

    Screenshot 11: URL 1 — ComEd.com/OwnershipChange opened successfully (Distributed Generation Facility Assessment PDF)

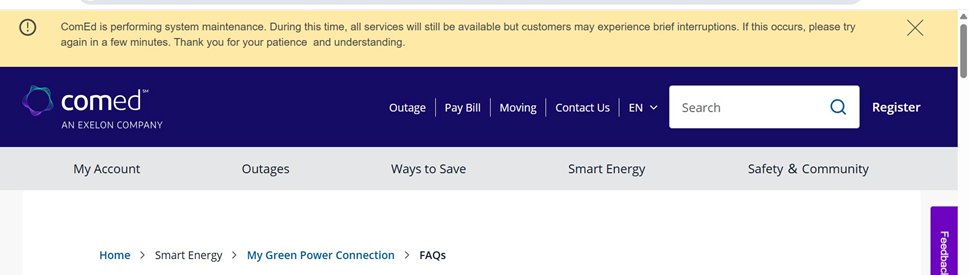

    Screenshot 12: URL 2 — ComEd.com/SolarFAQ opened successfully (My Green Power Connection FAQs page)

    Screenshot 12: URL 2 — ComEd.com/SolarFAQ opened successfully (My Green Power Connection FAQs page)

Troubleshooting & Common Issues

If you encounter issues while following the steps above, refer to this table for quick solutions.

Symptom / Error Message Root Cause How to Fix It
NET::ERR_CERT_COMMON_NAME_INVALID when clicking tracked email links SendGrid was generating HTTP tracking links instead of HTTPS. Since track.comed.com enforces HSTS, HTTP links are rejected by the browser. Raise a ticket with SendGrid to investigate the HTTP/HTTPS tracking inconsistency and update link-tracking settings to enforce HTTPS.
Error persists for specific users on Exelon corporate network even after SendGrid fix Corporate firewall, proxy, or network security policy is blocking or interfering with track.comed.com for certain users. Advise the customer to raise an internal IT ticket to whitelist track.comed.com. Resolution is dependent on their IT team reviewing firewall and proxy rules.
Links open correctly for users on personal devices or off-network The tracking link itself is functioning correctly after the SendGrid fix. The issue is network-specific. Confirm that on-network vs. off-network testing reproduces the behavior, and escalate to customer IT accordingly.

Guidelines

What to Avoid

  • ✕Do not advise customers to clear their SSL state as a permanent fix, this is a temporary workaround and will not resolve underlying firewall or proxy issues.
  • ✕Do not close the ticket as resolved until the customer confirms that tracked links open successfully from their corporate network, or an IT ticket has been raised and acknowledged.
  • ✕Do not modify the live template (Make It Live) during investigation always test using Email-Draft to avoid impacting production emails.

Frequently Asked Questions (FAQs)

Q: Why is Agent511 adding tracking code to email links?

A: Agent511 uses SendGrid's click-tracking feature to record when recipients interact with links in outbound emails. This is standard for email analytics and is enabled for all OPCOs.

Q: Can the tracking be removed from a specific template?

A: Tracking can be disabled at the template or account level, but this requires coordination with the Agent511 product team. Raise an internal request if a customer requires tracking to be removed for compliance or security reasons.

Q: What if the issue persists after SendGrid settings are updated?

A: If the error continues for users on a specific corporate network, the issue is likely caused by a corporate firewall or proxy. Advise the customer to raise an internal IT ticket to whitelist track.comed.com and associated tracking domains.

Q: Who do I contact if the issue persists after all troubleshooting steps?

A: Escalate the Zendesk ticket internally and include the troubleshooting findings, test results, and confirmation of whether the SendGrid fix was applied. Reference the original ticket #24729 for context.

References & Related Tickets

For internal team use: Reference past Jira or Zendesk tickets related to this article.

  • ZD-24729 Customer ticket reported by Meni Bougiotopoulos — email links in Template 1899 marked unsafe due to tracking URL certificate error.
  • SendGrid Settings updated to enforce HTTPS for click-tracking links — HTTP/HTTPS inconsistency resolved.

Affected Components

Component Detail
Template 1899 Solar Ready Premise 45-Day Reminder (12/05/24 Version – NEM)
Agent511 Email link tracking feature — enabled for all OPCOs
SendGrid Email delivery vendor — HTTP/HTTPS link tracking inconsistency (resolved via settings update)
track.comed.com Tracking redirect domain — HSTS enforced; HTTP links cause cert error
Exelon corporate network Firewall/proxy potentially blocking track.comed.com for certain users (customer IT action required)
